Grounding Clamps

Grounding Clamps

Get in touch

Download info sheet

Save for later

Features and benefits

  • Meets ASTM F855 specification
  • Line range up to 2” (50.8 mm)
  • Adjustable to ensure secure connection between clamp and cable

Slingco’s grounding clamps meet ASTM F855 and have a maximum line range of up to 2” (50.8mm) which allows them to be used in a wide variety of grounding applications.

Aluminum clamps
Slingco’s aluminum grounding clamps have a location for a grounding stud which allows for a wide variety of grounding applications. The Slingco aluminum clamps come with serrated and a smooth jaw offering.

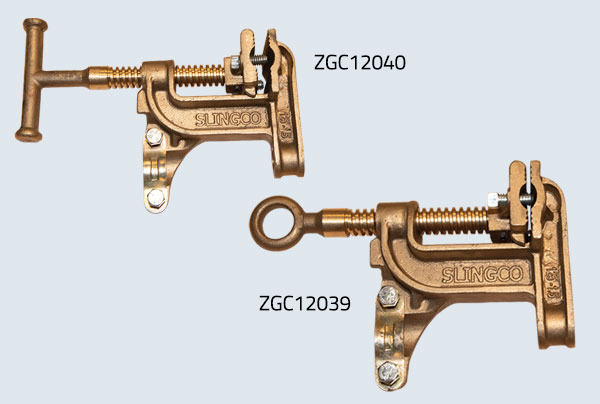

Bronze clamps
Slingco’s bronze grounding clamps have set screws in the moveable jaw which allows the user to adjust and make sure there is a secure connection between the clamp and cable. The flat face clamps come with a serrated jaw and are available with a T-handle or Eye Bolt.

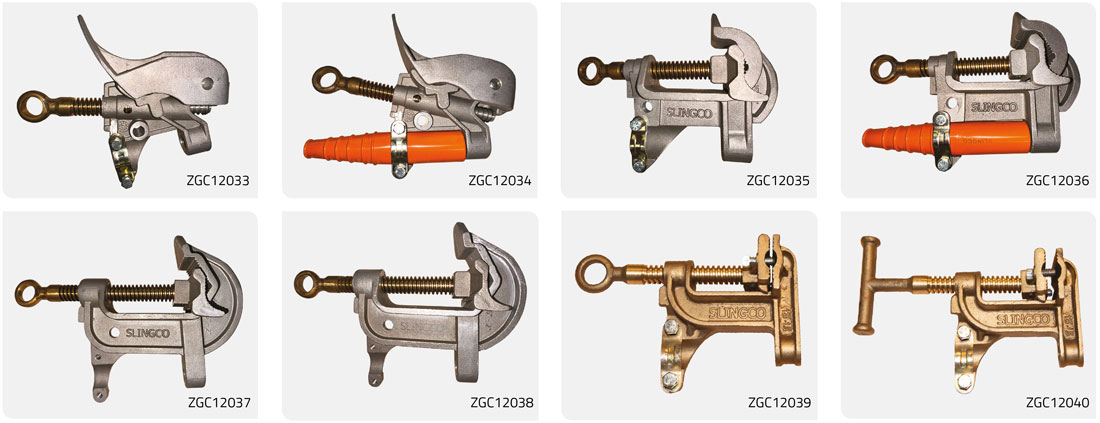

Grounding Clamps group
Slingco Part. No. Description Clamp Material Eye Type Class/ASTM Grade Line Range (in) Weight (lb)
ZGC12033Duckbill Clamp w/o Strain ReliefAluminumEye BoltClass B/Grade 5H0.16-1.661.85
ZGC12034Duckbill Clamp w/ Strain ReliefAluminumEye BoltClass B/Grade 5H0.16-1.661.98
ZGC120351.5" (38 mm) C-Clamp w/o Strain ReliefAluminumEye BoltClass B/Grade 50.16-1.501.85
ZGC120361.5” (38 mm) C-Clamp w/ Strain ReliefAluminumEye BoltClass B/Grade 50.16-1.501.98
ZGC120372” (51 mm) C-Clamp w/ Serrated JawAluminumEye BoltClass B/Grade 5H0.16-2.002.25
ZGC120382” (51 mm) C-Clamp w/ Smooth JawAluminumEye BoltClass A/Grade 5H0.16-2.002.20
ZGC120391.5" (38 mm) Flat Face GroundingBronzeEye BoltClass B/Grade 50.125-1.501.98
ZGC120401.5" (38 mm) Flat Face GroundingBronzeT HandleClass B/Grade 50.125-1.502.16

A note about dimensions and tolerances

Slingco Part. No. Description Clamp Material Eye Type Class/ASTM Grade Line Range (mm) Weight (kg)
ZGC12033Duckbill Clamp w/o Strain ReliefAluminumEye BoltClass B/Grade 5H4.06-42.160.84
ZGC12034Duckbill Clamp w/ Strain ReliefAluminumEye BoltClass B/Grade 5H4.06-42.160.90
ZGC120351.5" (38 mm) C-Clamp w/o Strain ReliefAluminumEye BoltClass B/Grade 54.06-38.100.84
ZGC120361.5” (38 mm) C-Clamp w/ Strain ReliefAluminumEye BoltClass B/Grade 54.06-38.100.90
ZGC120372” (51 mm) C-Clamp w/ Serrated JawAluminumEye BoltClass B/Grade 5H4.06-50.801.02
ZGC120382” (51 mm) C-Clamp w/ Smooth JawAluminumEye BoltClass A/Grade 5H4.06-50.801.00
ZGC120391.5" (38 mm) Flat Face GroundingBronzeEye BoltClass B/Grade 53.18-38.100.90
ZGC120401.5" (38 mm) Flat Face GroundingBronzeT HandleClass B/Grade 53.18-38.100.98

A note about dimensions and tolerances

Don't see the product you need?

Our range is continually developing and expanding - plus we frequently undertake custom engineering design - so if you don’t see the exact product you need, please contact us with your exact requirements.
